A traditional sauna heater needs a dedicated 240V circuit sized to its nameplate rating — typically 30A to 60A for residential heaters between 4.5 kW and 12 kW — hard-wired through a junction box, with an accessible disconnect outside the hot room. This is licensed, permitted work in most jurisdictions, and it is the first thing to check and the last thing to economise on.
The figures below are for planning. Your electrician specifies the actual installation, and the heater's own installation manual governs. Local code always takes precedence over anything here.
Check this before you do anything else
Walk to your electrical panel. It takes ten minutes and it determines whether your sauna project is affordable.
Three things to note:
- The main breaker rating. 100A, 150A, 200A, or higher. This is the total capacity of your service.
- How many free breaker slots there are. A 240V circuit needs two adjacent slots.
- The distance from the panel to where the sauna will be. Walk it and estimate the cable route, not the straight line.
Why this comes first: an 8 kW heater needs roughly 40–50A. On a full 100A service with no spare slots, adding that circuit means a subpanel ($1,000–$2,500) or a service upgrade ($2,500–$6,000) — costs that have nothing to do with saunas and can exceed the price of the sauna itself. This is the single largest financial risk in a sauna project, and it is free to check.
Circuit sizing by heater output
Planning figures for 240V single-phase residential installations.
| Heater | Approx. current | Typical breaker | Typical copper conductor |
|---|---|---|---|
| 3.0 kW | 13 A | 20 A | 12 AWG |
| 3.5 kW | 15 A | 20 A | 12 AWG |
| 4.5 kW | 19 A | 25–30 A | 10 AWG |
| 6.0 kW | 25 A | 30–40 A | 10 AWG |
| 8.0 kW | 33 A | 40–50 A | 8 AWG |
| 9.0 kW | 38 A | 50 A | 8 AWG |
| 10.5 kW | 44 A | 60 A | 6 AWG |
| 12.0 kW | 50 A | 60 A | 6 AWG |
| 15.0 kW | 63 A | 80 A | 4 AWG |
These are planning figures only. Actual breaker and conductor sizing depends on:
- The heater's nameplate current, which is what governs
- Whether the load is treated as continuous, which affects the sizing factor
- Conductor insulation temperature rating
- Ambient temperature derating
- The length of the run and permissible voltage drop
- Local code amendments
Long runs need upsizing. Voltage drop over a long conductor means the heater delivers less than its rated output and runs longer to compensate. Over roughly 75–100 feet, expect your electrician to go up a size.
Infrared cabins
Much lighter requirements, which is a genuine advantage of the format.
| Cabin | Typical supply |
|---|---|
| 1–2 person, 1.5–2 kW | Standard 120V 15A or 20A outlet |
| 3 person, 2–2.5 kW | Dedicated 120V 20A circuit |
| 4 person, 3 kW+ | Dedicated 20A circuit or 240V |
Even where a cabin will plug into an existing outlet, a dedicated circuit is recommended so the sauna is not sharing with other loads. Many one- and two-person cabins genuinely need no electrician at all, which removes $500–$1,500 and several weeks from the project.
→ Traditional Sauna vs Infrared Sauna
What the installation must include
A dedicated circuit. The heater cannot share with anything — not lighting, not an outlet, not the EV charger.
Hard-wired connection. Sauna heaters are connected through a junction box, not plugged in.
An accessible disconnect, located outside the sauna in most jurisdictions, so power can be isolated for service without entering the hot room.
GFCI protection where required by local code. Requirements vary by jurisdiction and by location — garages, basements and outdoor installations frequently have their own rules on top of the heater's.
Correct conductor type for the environment and the route. Conduit is often required, particularly for exterior and buried runs.
Sauna-rated wiring inside the hot room. Standard cable insulation is not rated for sustained sauna temperatures. Any wiring inside the sauna envelope — to the heater, to the light, to the sensor — must be rated for it, typically high-temperature silicone-insulated cable.
Correct sensor wiring. The temperature sensor runs on a low-voltage cable to the controller and is usually specified by the heater manufacturer. Follow the manual on both cable type and routing.
Sauna-rated lighting. Standard fixtures fail. Any light inside the room must be rated for the temperature and humidity, and wired with high-temperature cable.
A permit and inspection.
The controller and sensor
Often overlooked at the planning stage and awkward to add later.
Integrated controls are on the heater itself, so no additional wiring beyond the supply.
External control panels are mounted outside the sauna and wired to the heater with a dedicated control cable. Plan the cable route while the walls are open.
Wi-Fi modules may sit at the controller or at the heater depending on the system, and may need a data connection or just power. Confirm before framing.
The sensor has a specified position — normally on a wall above the heater, a set distance below the ceiling, and out of the path of incoming ventilation air. Its cable must run there.
Run every control and sensor cable before insulation and cladding go on. Fishing a control cable through a finished sauna wall means opening cladding you have just installed.
→ How to Choose the Right Sauna Heater

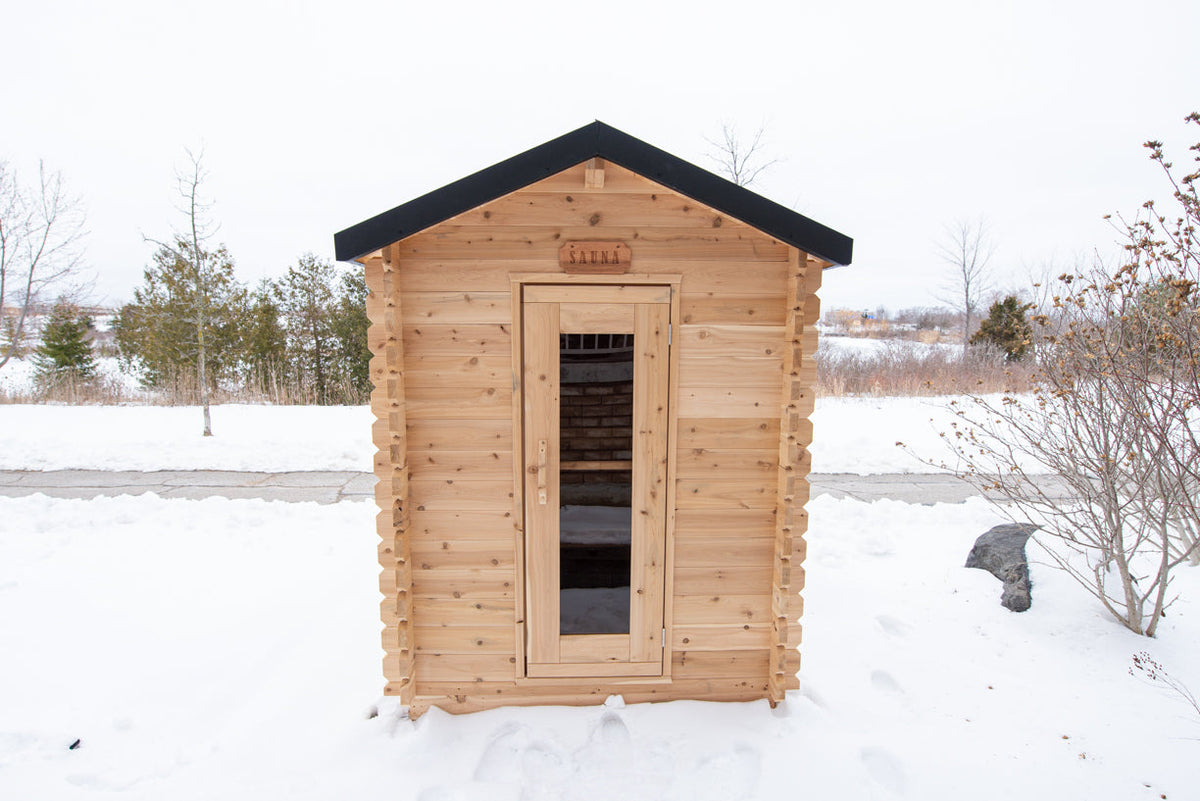

Outdoor saunas
The electrical is usually the largest line item in an outdoor build.
What is involved:
- A trench, typically 18–24 inches deep, or an approved above-ground route
- Direct-burial cable or conduit rated for the application
- A disconnect at the sauna
- GFCI protection as required
- Permit and inspection
Typical cost: $1,500–$5,000, driven almost entirely by distance and by what the trench has to cross. Thirty feet of open lawn is cheap. Seventy feet under a driveway, around mature tree roots and across a patio is not.
- Run a subpanel rather than a single circuit if you might later add outdoor lighting, a plunge chiller, a shed or a workshop. Trenching once is far cheaper than trenching twice.
- Add a conduit for low-voltage or data, even if you have no use for it yet.
Walk the route before you commit. Note the driveway, the patio, the tree, the septic field, the irrigation. Each crossing adds cost, and a $4,000 trench quote is common enough that it sometimes justifies going wood-fired instead — which removes the electrical requirement entirely.
→ Outdoor Sauna Buying Guide · Electric vs Wood-Burning
Permits, inspection and why they matter
An electrical permit is required in essentially every jurisdiction for a new dedicated 240V circuit.
The process: the electrician pulls the permit, runs the circuit, and the work is inspected — usually with the rough-in visible before it is closed up, and again after final connection.
Why it matters beyond compliance:
- Insurance. A claim arising from unpermitted electrical work can be denied. This is not theoretical.
- Warranty. Most heater warranties require installation by a licensed electrician.
- Resale. Unpermitted work is a disclosure item and a negotiating point at sale.
- Safety. A 50A continuous load on an undersized conductor is a fire risk, and it is exactly the kind of thing an inspection catches.
Cost: $100–$500 for the permit and inspection. Against the cost of the alternatives, this is not the place to save.
Schedule it early. Permit processing and inspection scheduling are the steps that most often extend a sauna project's timeline. Start them while the sauna is in production, not after it arrives.
What you must not do yourself
In most US jurisdictions this is licensed work. Where a homeowner permit is available, it still requires inspection and it still voids most heater warranties. The risks are fire, a denied insurance claim, and a problem at resale — against a saving of $500–$1,500.
Sharing an existing circuit. A sauna heater needs its own. Piggybacking on a dryer or EV charger circuit is not an option regardless of how convenient it looks.
Substituting cable types. Standard cable inside a sauna envelope is not rated for the temperature.
Skipping the disconnect or putting it inside the hot room.
Guessing at breaker size. Use the heater's nameplate and your electrician's calculation, not a chart.
→ DIY Sauna vs Professional Installation
Understanding your panel
A short primer, because most of the decisions above depend on reading a panel correctly.
Main breaker rating. The large breaker at the top, marked 100, 125, 150, 200 or higher. This is the total current your service can deliver. A 200A service comfortably absorbs a sauna; a 100A service in a house with electric heat, an electric range, a dryer and an EV charger may not.
Free slots. A 240V circuit occupies two adjacent slots. Count genuinely empty positions — not slots with breakers serving circuits you think are unused, which is a common and expensive misreading.
Tandem breakers. Some panels have half-height breakers doubling up a slot. These do not create space for a 240V circuit, which needs two full adjacent positions on opposite phases.
Panel age and type. Some older panel brands are no longer supported and new breakers for them are difficult or inadvisable to source. An electrician will tell you immediately if yours is one; it usually means replacing the panel.
Load calculation. Free slots are not the same as available capacity. An electrician performs a load calculation on the whole house to confirm the service can carry the additional load. A house can have empty slots and still be at capacity.
Subpanel as the answer. Where the main panel is full but the service has capacity, a subpanel near the sauna is often cheaper and more useful than shuffling the main panel — particularly outdoors or in a garage, where you may later want more circuits.
What "the panel is full" actually costs: a subpanel at $1,000–$2,500, or a full service upgrade at $2,500–$6,000. Knowing which applies before you design the room is worth an hour of an electrician's time.
Planning checklist
- Main breaker rating and free slots at the panel
- Distance and route from panel to sauna, walked and estimated
- Heater kW calculated from room volume plus all adders — glass, tile, uninsulated surfaces
- Nameplate current from the heater's specification, not from a chart
- Whether a subpanel is the better answer, especially outdoors
- Where the disconnect goes, outside the hot room
- Controller and sensor cable routes, planned at rough-in
- Sauna-rated cable for anything inside the envelope
- Sauna-rated lighting and its wiring
- GFCI requirements for the location
- Permit application started early
- Electrical quote obtained before ordering the sauna
That last item is the one that keeps projects on budget.
Troubleshooting electrical symptoms
Some sauna complaints are electrical and present as something else.
The breaker trips when the heater runs. Either the breaker is undersized for the load, the conductor is undersized and overheating, or a heating element has failed to ground. Stop using the heater and have it checked — a repeatedly tripping breaker is a warning, not an inconvenience.
The room never reaches temperature and the heater runs constantly. Usually undersizing or poor insulation, but a long undersized conductor causing voltage drop produces exactly the same symptom, because the heater delivers less than its rated output. Worth checking if the run is long.
The heater's thermal cut-out trips repeatedly. Almost always an overpacked stone basket restricting airflow around the elements, not an electrical fault. Restack the stones loosely before calling anyone. → Sauna Stones Guide
The room runs hotter or cooler than the display says. A sensor position problem rather than an electrical one. In the incoming air path it reads cold and the heater over-runs; too near the stones it reads hot and the room under-heats.
The controller behaves erratically. Electronics in heat and humidity eventually degrade. An external panel outside the hot room lasts considerably longer than one mounted on the heater.
Lights failing repeatedly. The fixture or its wiring is not rated for sauna conditions. Replace with sauna-rated components rather than replacing the same fitting again.
One element cold. A failed element. They are field-replaceable and the part is usually inexpensive; premature failure is nearly always caused by restricted airflow from tight stone stacking.
Frequently Asked Questions
What size breaker do I need for a sauna heater?
Roughly 20–30A for a 4.5 kW heater, 30–40A for 6 kW, 40–50A for 8 kW, 50A for 9 kW and 60A for 10.5–12 kW, all on a dedicated 240V circuit. Actual sizing depends on the heater's nameplate current, conductor temperature rating, run length and local code, so confirm with your electrician and the heater's installation manual rather than working from a chart.
Does a sauna need a dedicated circuit?
Yes. A traditional sauna heater must have its own dedicated 240V circuit and cannot share with lighting, outlets or another appliance. Even small infrared cabins that plug into a standard 120V outlet are better on a dedicated circuit so the sauna is not competing with other loads.
Does a sauna heater need GFCI protection?
Requirements vary by jurisdiction and by location — garages, basements, bathrooms and outdoor installations frequently have specific GFCI rules on top of anything the heater requires. Your electrician will apply the local code. Do not assume that because a heater does not mention GFCI, none is required where you are installing it.
Can I install a sauna heater myself?
You can mount the heater physically and stack the stones, but the 240V connection is licensed work in most jurisdictions. Doing it yourself risks fire from undersized conductors, voids most heater warranties, can invalidate an insurance claim, and creates a disclosure problem at resale — against a saving of only $500–$1,500.
How much does it cost to wire a sauna?
$500–$1,200 for a dedicated 240V circuit on a short accessible run, $1,200–$3,000 where the run is long or passes through finished walls, and $1,500–$5,000 for a trenched run to an outdoor sauna. Add $1,000–$2,500 for a subpanel or $2,500–$6,000 for a service upgrade if the panel lacks capacity, plus $100–$500 for permit and inspection.
This article gives general planning information. It is not a substitute for a licensed electrician, the heater manufacturer's installation manual, or your local electrical code, all of which take precedence.
