Specifying a heater for a custom-built sauna is harder than for a kit, because a kit's manufacturer has already done the sizing and the clearance check for you. In a custom room you calculate the volume yourself, apply every adder honestly, verify clearances against a bench layout that does not exist yet, and place the sensor in a room whose airflow you are also designing.
Get this right and the room works. Get it wrong and you have a beautifully built sauna that never quite arrives — the most common failure in custom sauna projects, and one that cannot be fixed cheaply afterwards.
Why custom rooms are different
Kits come pre-solved. The manufacturer knows the volume, has specified a heater range, has designed the bench positions around the heater's clearances, and has placed the sensor where it works. A custom room hands all four decisions back to you.
Custom rooms have more adders. They are the ones with glass fronts, tiled floors, log walls, exposed masonry, sloped ceilings and irregular footprints — every one of which changes the calculation, and most of which a kit never encounters.
The sequence is reversible in the wrong direction. In a custom build it is entirely possible to design benches, build them, and then discover the heater's clearances do not fit. This is the single most common and most expensive custom sauna error.
Choose the heater and the bench layout together, before either is built.
Step 1: Calculate the volume properly
Interior length × width × height, in feet, measured to the inside face of the finished cladding — not the framing.
Common errors:
- Using framing dimensions. A 5' × 7' framed opening finishes closer to 4'8" × 6'8". Using the rough dimensions inflates volume by 10–15%.
- Not dropping the ceiling. A basement room left at 9 feet is 29% larger in volume than the same footprint at 7 feet.
- Forgetting part of the room. An L-shape, an alcove, or a vestibule inside the heated envelope all count.
Irregular geometries:
- Sloped ceiling: use the average height. A ceiling running 6'6" to 8'0" averages 7'3".
- L-shaped room: calculate each rectangle and sum.
- Barrel or curved: π × radius² × length.
- Vestibule inside the sauna envelope: count it. Outside the sauna door: do not.
Then divide by 45–50. Use 45 for cold climates, heavy löyly use or where a faster heat-up matters; 50 for warm climates and well-insulated interior rooms.
Step 2: Apply every adder honestly
This is where custom rooms diverge from kits, and where undersizing happens.
| Feature | Add |
|---|---|
| Standard glass door | +0.5 kW |
| Glass panel, window or full front | +1.5–2 kW per m² |
| Uninsulated log wall | +1.5 kW per m² |
| Tile, stone, brick or concrete surface | +1.5 kW per m² |
| Uninsulated exterior wall | +0.5–1 kW |
| Uninsulated concrete slab beneath | +0.5–1 kW |
| Outdoor installation, mild climate | +0.5–1 kW |
| Outdoor installation, cold climate | +1.5–2 kW |
| Unheated garage, cold climate | +0.5–1.5 kW |
| High ventilation rate (commercial) | +10–20% overall |
| Commercial duty | +20–30% overall |
| Heat-up required under 30 minutes | +20–25% overall |
Conversions: 1 m² ≈ 10.8 ft². A standard sauna glass door is roughly 1.6 m², which is why the +0.5 kW shortcut works for a door and nowhere else.
Two worked examples
A 5' × 7' × 7' room, insulated, all-wood, glass door. 245 ft³ ÷ 47 = 5.2 kW, +0.5 for the door = 5.7 kW → a 6 kW heater.
The same room with a full glass front on the 5-foot wall (3.3 m²) and a tiled floor (3.3 m²): 5.2 + 5.8 + 5.0 = 16 kW. Three times the heater, a circuit no ordinary residential panel will supply, and a permanently higher running cost — from two decisions taken for appearance.
The lesson is not that glass and tile are wrong. It is that they must be priced in kilowatts, not just in dollars, and decided before the heater is specified.
→ Custom Sauna With Glass Walls · What Size Sauna Heater Do I Need?
Step 3: Fix the envelope before upsizing the heater
The most valuable judgement in custom heater specification.
Ask whether the surface can be changed instead of the heater upsized.
- An uninsulated foundation wall adding 1.5 kW per m² can be framed, insulated and clad for a few hundred dollars. Doing so removes the adder entirely.
- A tiled floor adding 1.5 kW per m² could be sealed concrete with a duckboard over it, for less money and less heater.
- A glass panel could be a smaller window, or a glass door only.
- An uninsulated slab can take rigid insulation under the sauna floor.
| Path | Cost |
|---|---|
| Insulate the wall | $300 – $900 once |
| Upsize the heater to compensate | $600 – $2,500, plus a larger circuit at $500 – $2,000, plus higher running cost forever |
Insulating almost always wins. A custom sauna that needs 16 kW usually needs it because of decisions that could have been made differently, not because the room is large.
Step 4: Choose the mounting format
Custom rooms have more freedom here than kits, and the choice should follow the layout.
Wall-mounted. The default. Compact, keeps the floor clear, simplest clearances, widest model choice. Right for most rooms up to about 300 ft³.

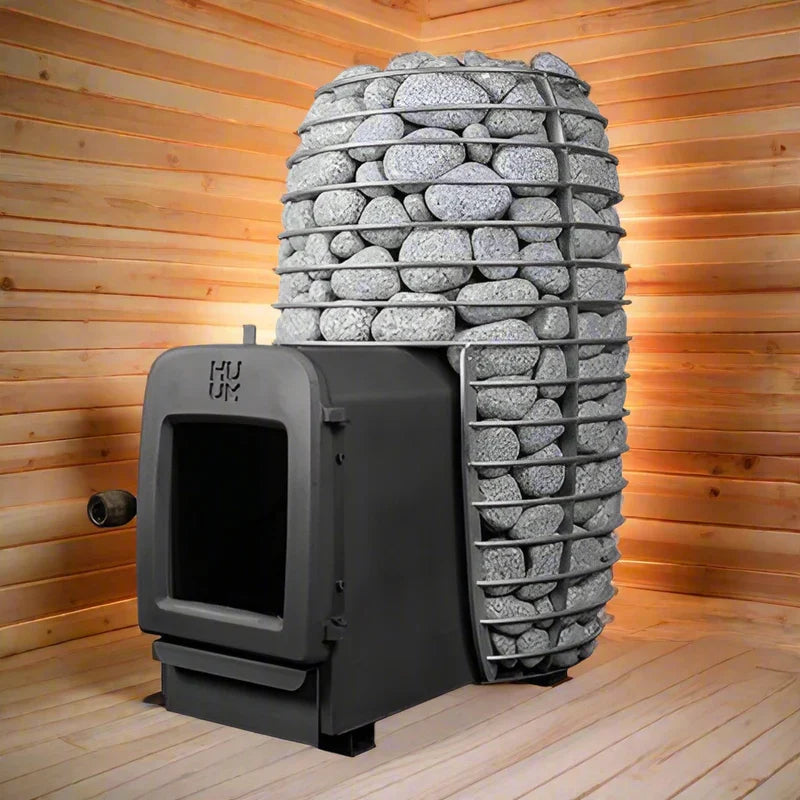

Floor-standing. Substantially more stone mass — often 100 lb and up against 30–60 lb for a wall unit. That mass is what gives löyly that recovers between throws. Worth it from about 4-person size upward if you have the floor area.
Tower or pillar. Large stone mass with radiation on all sides, which helps even out heat distribution in a bigger or longer room. Also the strongest design statement.
Under-bench. Invisible, frees the floor entirely, excellent in very small rooms. The cost is stone capacity, so milder steam, and the bench must be designed around the clearances from the start.
Corner-mounted. Preserves the full run of both bench walls in a square room.
Versions of standard outputs rated to sit closer to combustible surfaces. In a tight custom room these are frequently the difference between a workable layout and a compromised one — and many people do not know they exist.
→ How to Choose the Right Sauna Heater
Step 5: Clearances against the bench layout
Do this before anything is built.
Every listed heater publishes minimum distances to combustible surfaces: side walls, rear wall, ceiling above the stones, floor, and the nearest bench face. These are conditions of the heater's listing, not guidance, and an inspector will check them.
The check to perform:
- Draw the room to scale with the bench layout you want
- Place the heater
- Mark every published clearance as a hatched zone
- Confirm no bench, backrest, trim or guard intrudes
- Confirm at least 24 inches of circulation remains
- Confirm the door swing does not conflict outside the room
Try a low-clearance variant of the same output, a different mounting format, moving the heater, or adjusting the bench layout — in that order. Buying a smaller heater to make the clearances work is the wrong answer; you will have an undersized room forever.
Also verify: the mounting height for a wall heater; the ceiling clearance above the stones, which is frequently the binding constraint in a low room; the guard rail's footprint, which projects further than the heater; and that the head of a seated bather on the upper bench is at or below the top of the stone basket.
→ How to Design a Custom Sauna
Step 6: Sensor position and controls
The sensor has a specified position, usually on a wall above the heater at a stated distance below the ceiling, and out of the path of incoming ventilation air. In a custom room you are designing the airflow at the same time, so check the two against each other.
- Sensor in the inlet airflow path → reads cold → heater over-runs → room hotter than the display
- Sensor too close to the stones → reads hot → heater under-runs → room never arrives
- Sensor too near the ceiling → reads hot → same result
Both symptoms present as "the heater is the wrong size" and neither is.
Controls. For a custom build, an external panel outside the hot room is the sensible default — you set the room without entering it and the electronics stay out of the heat.
Wi-Fi control matters more in a custom room than in a kit, because custom rooms are often larger with longer preheats.
Control cable, sensor cable and light wiring all run inside the wall, and retrofitting any of them means opening cladding you have just finished.
→ Custom Sauna Electrical Requirements
Step 7: Confirm the circuit
A heater specification is also a circuit specification.
| Heater | Approx. current at 240V | Typical breaker |
|---|---|---|
| 4.5 kW | 19 A | 25–30 A |
| 6 kW | 25 A | 30–40 A |
| 8 kW | 33 A | 40–50 A |
| 9 kW | 38 A | 50 A |
| 12 kW | 50 A | 60 A |
| 15 kW | 63 A | 80 A |
Planning figures; the nameplate and local code govern.
Check the panel before ordering the heater. In a custom build the room can be any size, which means the heater can easily exceed what the house can supply — and discovering that after the room is framed is the worst possible sequence.
Stone capacity: the spec custom builders should prioritise
What kW tells you: how fast heat is produced. What stone mass tells you: how much heat is stored, and therefore how the room behaves when water hits the stones.
In practice: a low-mass heater brings the room to 180°F perfectly well, then drops 15–20°F after two ladles and takes minutes to recover. A high-mass heater in the same room absorbs the same water without losing composure.
| Room | Stone capacity to look for |
|---|---|
| Small, up to ~170 ft³ | 30–45 lb |
| Mid, 200–300 ft³ | 60 lb or more |
| Large, 330 ft³+ | 100 lb or more |
The trade-off is heat-up time. More stone takes longer to saturate. Two responses: preheat 10–20 minutes beyond the thermostat's cut-out, and fit remote control so that costs you nothing in convenience.
A bigger heater raises the air faster; the stones still need their time, and you have bought a heavier circuit for no gain.
Stone type matters too. Sauna-grade olivine diabase or peridotite, stacked loosely with visible air gaps, largest at the bottom. Never river rock or anything porous, and never pack the basket tight — restricted airflow is the leading cause of early element failure.
→ Sauna Stones: Complete Guide
The custom heater specification checklist
- Interior volume, from finished dimensions
- Baseline kW, volume ÷ 45–50
- Every adder applied — glass, masonry, tile, uninsulated surfaces, outdoor, duty
- Envelope improvements considered before upsizing
- Final kW, rounded up to an available size
- Inside the model's published minimum and maximum room volume
- Mounting format chosen to suit the layout
- All clearances checked against a scaled bench drawing
- Stone capacity compared across candidate models at that output
- Sensor position agreed, out of the ventilation path
- Control panel type and cable route planned
- Guard rail specified — included or separate
- North American listing confirmed
- Circuit size checked against panel capacity
- Residential or commercial duty assessed honestly
Frequently Asked Questions
How do you size a heater for a custom sauna?
Calculate the interior volume from finished dimensions, divide by 45–50 for a baseline in kilowatts, then add capacity for every surface that is not insulated wood — about 0.5 kW for a glass door, 1.5–2 kW per square metre of larger glass, and 1.5 kW per square metre of tile, stone or uninsulated log. Round up and confirm the figure sits inside the model's published room-volume range.
What size heater do I need for a sauna with a glass wall?
Add 1.5–2 kW per square metre of glass on top of the volume calculation. A 5' × 7' room needing 6 kW with a solid wall can need 11–12 kW with a full glass front on the 5-foot wall, which also takes the circuit from 30–40A to 60A. Specify the glass before the heater, not afterwards.
Where should the heater go in a custom sauna?
Where its published clearances are satisfied against the bench layout, where the fresh-air inlet can sit low behind or beside it, where nobody has to walk past it to reach a bench, and — if it is a design element — where it is visible from the door and the upper bench. Decide the heater position and the bench layout together, before either is built.
Should I upsize the heater or insulate better?
Insulate. Framing, insulating and cladding an uninsulated wall typically costs $300–$900 once, and it removes an adder of 1.5 kW per square metre entirely. Upsizing the heater to compensate costs more for the unit, more for the larger circuit, and more in running cost for the life of the sauna.
Do custom saunas need bigger heaters than kits?
Often, yes — not because they are custom but because they tend to include the features that add capacity: glass fronts, tiled floors, exposed masonry, log walls and outdoor installations. A custom room built to the same specification as a kit needs the same heater. The difference is that in a custom build nobody has done the calculation for you.
Calculation done and clearances checked?
