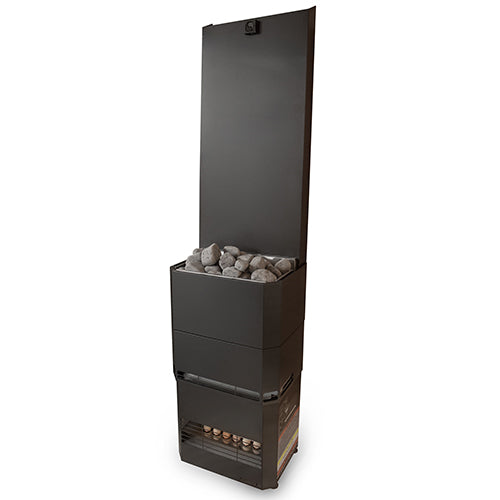

Saunum Air 5 Sauna Heater

• Heat Equalizing System
• Model: AIR 5
• Certification/Global Safety Rating: UL (Underwriters Laboratories)
• Heat/Steam Equalizer Module: 3-Speeds, Whisper-Quiet Operation
• Ceiling Hot Air Intake: 17.72" x 4" (450.09 x 101.6 mm)
• Cool Air Intake Type: Adjustable Valve, Side-Mounted, 12" (304.8 mm) Off Floor
• Cool Air Intake Size: 2" x 2.75" (50.8 x 69.85 mm)
• Blended Air Output: 4.31" x 14.13" (109.47 x 358.90 mm)
• Himalayan Salt and Aroma Tray Type: Removable, Slotted
• Himalayan Salt and Aroma Tray Size: 16.5" x 4.5" (419.1 x 111.76 mm)
• Sauna Heater System
• Certification/Global Safety Rating: UL (Underwriters Laboratories)
• Heater Body Style: Solid Steel - Nordic Black
• Heating Elements: Incoloy (Stainless Steel)
• Heating Element Protection: Air Tunnels, Slotted Stainless Steel, Three
• Room Size: 106 - 212 cu. ft. (3-6 Cubic Meters)
• Wattage Rating: 4950
• Operating Voltage: 240 V
• Phase: Single
• Amperage: 20.6
• Weight: 147 lbs (67 kg)
• Shipping Weight with Stones: 279 lbs (126.6 kg)
• Width: 18.3" (465 mm)
• Depth: 12.4" (315 mm)
• Height: 75.4" - 95" (1915-2420 mm)
• Minimum Ceiling Height: 73" (1850 mm)
• Stone Capacity: 110 lbs (50 kg)
• Stone Size: 2" to 4" (5-10 cm)
• Circuit Breaker: See Installation and Operation Manual
• Wire Size to Power Unit: (2) #10 + N + G
• Wire Size - Power Unit to Elements: 7-Conductor Cable, #14AWG , 90-Degree C, 5' (152.4 cm)
• Wire Size - Power Unit to Heat Equalizer: 5-Conductor Cable, #18AWG, 90-Degree C, 5' (152.4 cm)
• Room Temperature Sensor: Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm)

• Air Mixing Technology – Saunum patented air blending system mixes cold oxygen-rich air from the floor with hot oxygen-poor air off the ceiling to solve the discomfort so many associate with sauna. Whether you like it extremely hot, or just warm, Saunum delivers both in a way that heat and oxygen are felt head to toe.
• European Design – With an elegant black steel finish, Saunum combines Scandinavian design and quality materials.
• Massive Stone Capacity – Stones are the heart of a Nordic sauna. Ample stones result in softer, more even heat, and can produce more luxurious steam. Large 110 pound stone capacity (required 4 boxes sold separately).
• Himalayan Salt Reservoir – Himalayan Salt Spheres are positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits.
• Dry your Sauna – Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you're done enjoying the steam, the patented fan system will conveniently help dry your sauna.
• UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.
• Available Aromatherapy – Add another sensory layer with Saunum's optional aromatherapy system, which infuses aroma into the steam to further transform your experience.
• For sauna rooms from 106 to 212 cu. ft.

• Nordic Black Metal Stone Basket
• Heat Equalizing Module
• Telescopic Hot Air Intake
• Heating Element Air Tunnels (3)
• Himalayan Salt Spheres (7)
• Hot Air Intake Cap
• Stainless Steel Protective Grille
• Heating Element Electrical Cable, 5' (152.4 cm)
• Heat Equalizer Electrical Cable, 5' (152.4 cm)
• Room Temperature Sensor & Cable, 9.5' (289.56 cm)
• Door Sensor & Cable Assembly, 9.83' (299.62 cm)
• IQAir Display Panel Cable, 16' (487.68 cm)
• Quick Install Guide
• Installation and Operation Manual
• Limited Warranty

Saunum’s patented air blending system draws heat and steam from near the ceiling, mixes it with cooler, more oxygenated air near the floor, then directs more comfortable, breathable steam throughout the room. This equalizes room temperature by more than 60% for a significantly better sauna experience. You’ll enjoy longer, more satisfying sauna sessions with more intense sweating.

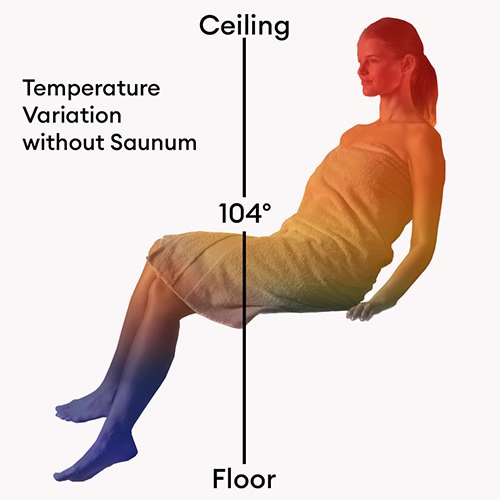

All sauna bathers have experienced the same issue – extreme variance in temperature and oxygen from the ceiling to the floor. The temperature at the ceiling can often exceed 200°F, while at the floor it will be under 100°F, causing your feet to feel uncomfortably cool and your head to be too hot. The temperature and oxygen level should be more consistent throughout.

This revolutionary sauna heater includes an ingenious climate equalizing system that more evenly balances the temperature and oxygen levels throughout your sauna for softer, more breathable air.

Saunum is all about the air!
•    The AIR we heat
•    The AIR we feel
•    The AIR we breathe

Enrich the air with Himalayan salt ions
The ions released from the patented Himalayan salt feature are propelled into the sauna to maximize their health benefits. Salt aerosol has long been used for its benefits as a decongestant, inflammation reduction, and possesses anti-microbial properties.

Add another dimension to your sauna with aromatherapy
Breathe deep, relax, let the room fill with heat and steam, and clear away your tension with the invigorating and awakening scents of Saunum’s available aromatherapy option.

Experience 6 distinct styles of sauna bathing
Saunum lets you customize your bathing experience by adjusting airflow, temperature, and steam to suit your exact preferences.

•    Russian Banya – Air blending, massive stone volume, intense heat, and steam. Heat, ventilation, and humidity merge to simulate a traditional banya.
•    Finnish Sauna – Harness the power of intense, dry heat for an authentic Finnish sauna. Its huge rock mass radiates intense, consistent heat.
•    Estonian Sauna – Long sweats, soothing heat and rich steam are the hallmarks of an Estonian sauna.
•    Yoga Sauna – Oxygenated airflow allows for yoga sauna experience. Even at floor level, equalized Air delivers warming heat for ideal hot yoga sessions.
•    Salt Sauna – A patented system propels healthful Himalayan salt ions throughout the room. Air passes across the salt chamber creating a true salt sauna.
•    Aroma Sauna – Not possible in most saunas, Saunum uses high humidity and air movement to bring satisfying aroma to your experience.
